The global automotive heat shield market is projected to reach USD 12.14 billion in 2025, driven by tightening emission regulations, the rapid adoption of electric vehicles, and increasing thermal management requirements across all vehicle categories (MarketsandMarkets). For B2B buyers — automotive parts manufacturers, exhaust system fabricators, aftermarket suppliers, and industrial thermal insulation companies — the sourcing decision for stainless steel heat shield coil has never been more critical.
Whether you are stamping exhaust heat shields for a Tier 1 automotive supplier, fabricating EV battery thermal barriers, or supplying muffler insulation materials to the aftermarket, one question dominates every procurement conversation: where do I get consistent quality at factory-direct pricing?
This guide explains why Ferosteel's factory-direct stainless steel thermal heat shield coil is the sourcing solution that leading automotive and industrial buyers are turning to in 2026.
Ferosteel is a Foshan-based stainless steel manufacturer with in-house slitting, embossing, cutting, and surface treatment capabilities. We supply heat shield coils directly to automotive parts manufacturers, industrial equipment producers, and wholesale distributors worldwide. Explore our heat shield coil product range.

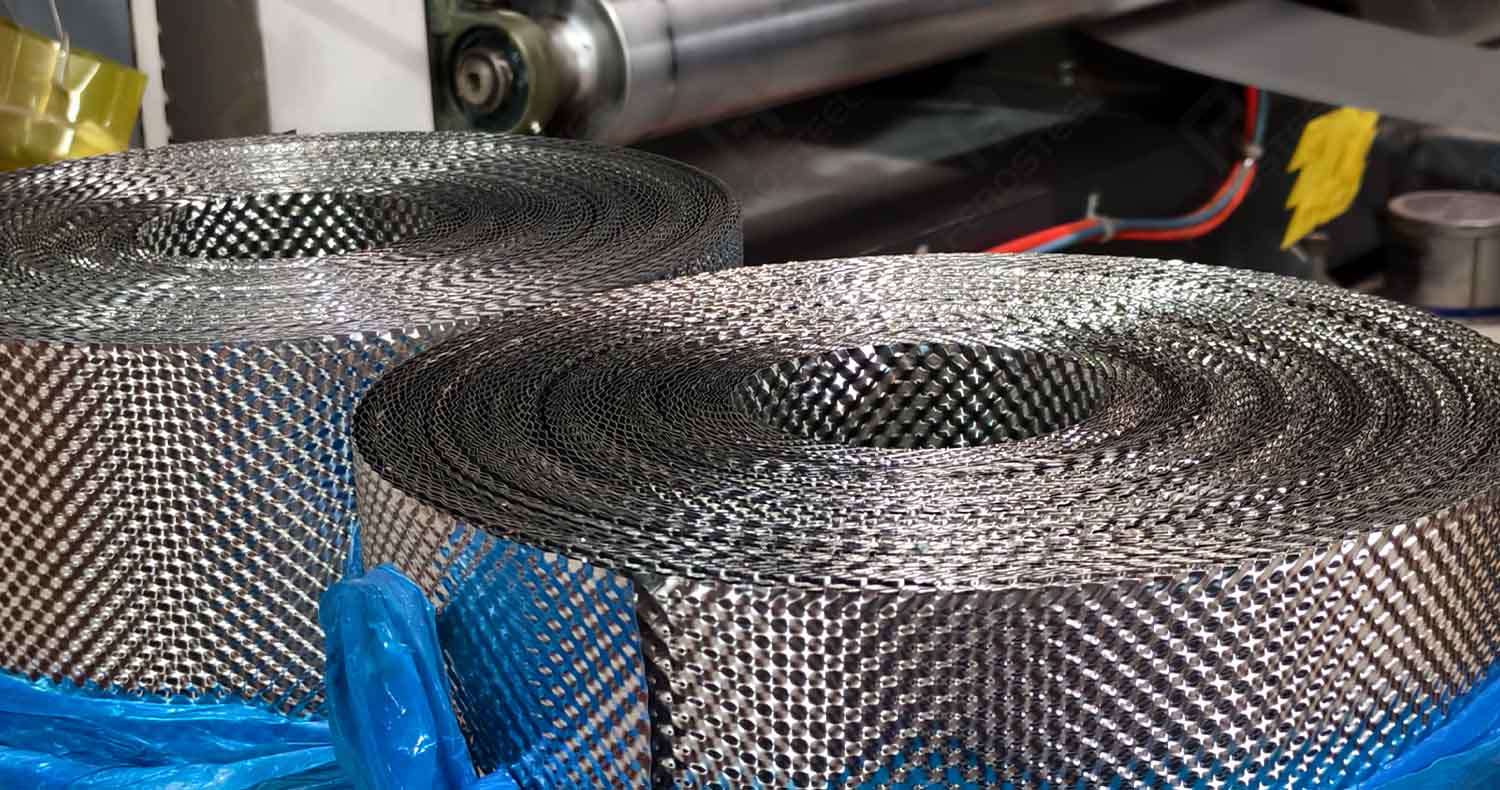

A stainless steel heat shield coil is a thin-gauge, continuous stainless steel strip — typically 0.10 mm to 0.15 mm thick and 600 mm wide — wound into rolls of approximately 50 meters. It is engineered to:

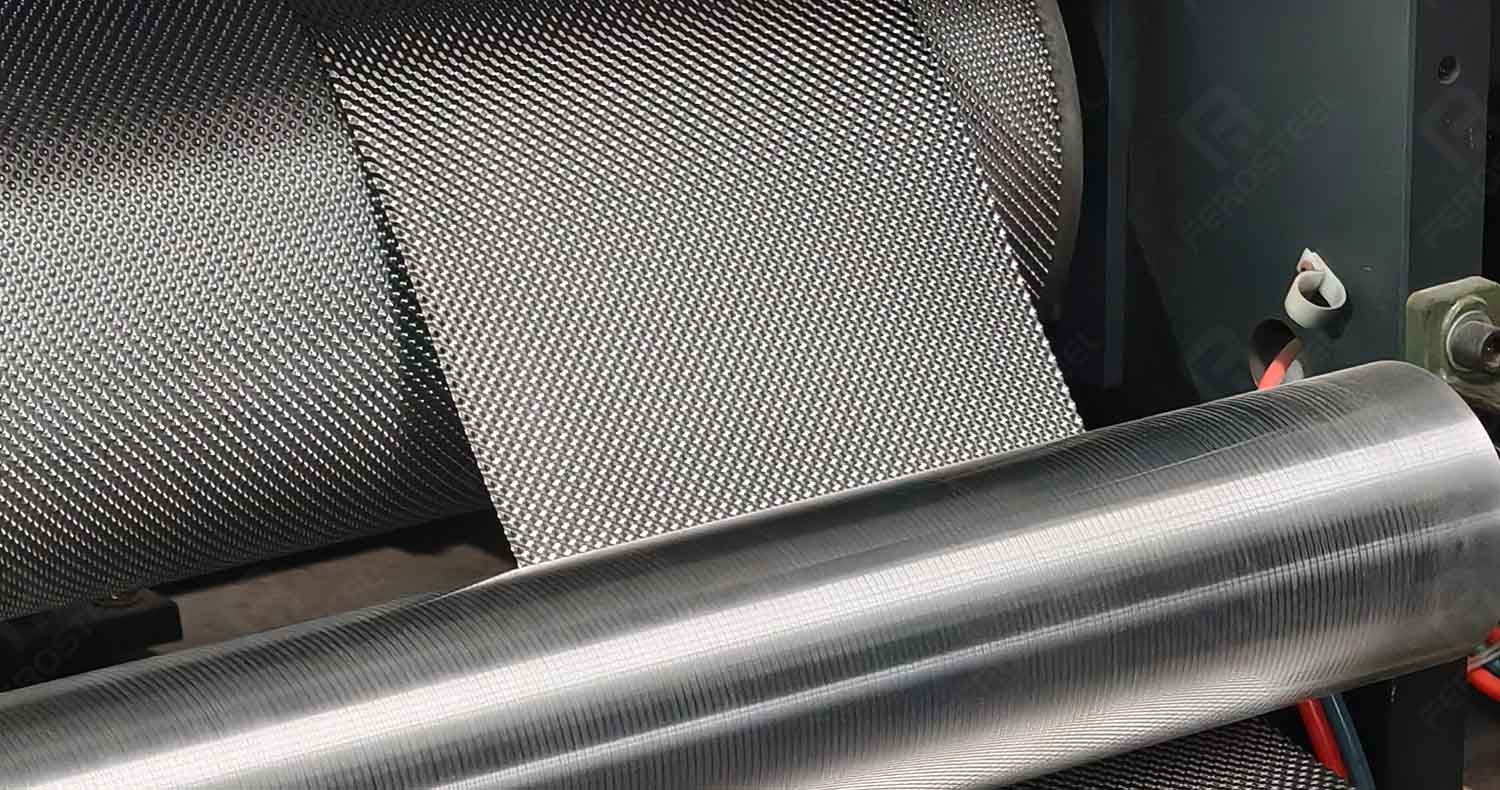

Unlike flat sheets, embossed heat shield coils feature raised patterns (round bean, diamond, 5-bar) that serve three engineering functions: they increase structural rigidity, create insulating air gaps, and improve heat dissipation through increased surface area.
Ferosteel manufactures both 304 stainless steel heat shield coils and embossed aluminium heat shield coils, catering to different temperature zones and application requirements.
| Parameter | Specification |
|---|---|
| Material Grade | 304 Stainless Steel (Austenitic) |
| Also Available | 201, 430 Stainless Steel |
| Thickness | 0.10 mm – 0.15 mm (ultra-thin) |
| Standard Width | 600 mm |
| Coil Length | ~50 meters per roll |
| Heat Resistance | ≥ 850°C (continuous) |
| Surface Finish | Embossed / Textured |
| Hardness | 1/2H, 3/4H |
| MOQ | 25 kg |
| Packaging | PE film + export-grade wooden pallets or coils |
| Lead Time | 7–15 working days |
| Pattern | Best For |
|---|---|
| Round Bean | Flexible applications, anti-slip, tight-radius bends |
| Small 5-Bar | Stamped shields, structural rigidity |
| Large 5-Bar | Heavy-duty industrial barriers, high-vibration zones |
| Diamond | Maximum heat dissipation, general-purpose automotive shields |
| Custom OEM | Proprietary designs, brand-specific requirements |
Ferosteel's heat shield coils can be fabricated using:
When you source from Ferosteel directly, every dollar you spend goes into the material and processing — not into distributor margins, logistics intermediaries, or multi-tier supply chain overhead. Our in-house production line covers:
This vertically integrated model means B2B buyers typically save 15–25% compared to sourcing through multi-level distribution channels.
Ferosteel operates under ISO 9001 quality management standards. Every heat shield coil batch undergoes:
Each coil is traceable to its production batch, giving buyers the documentation needed for OEM quality audits.
Unlike large mills that require multi-ton minimum orders, Ferosteel supports:
Ferosteel's production capacity enables standard lead times of 7–15 working days for heat shield coil orders. Expedited production is available for urgent requirements. With export experience spanning the Middle East, Southeast Asia, Europe, India, and South America, our logistics team handles all shipping documentation, customs clearance support, and export-standard packaging.

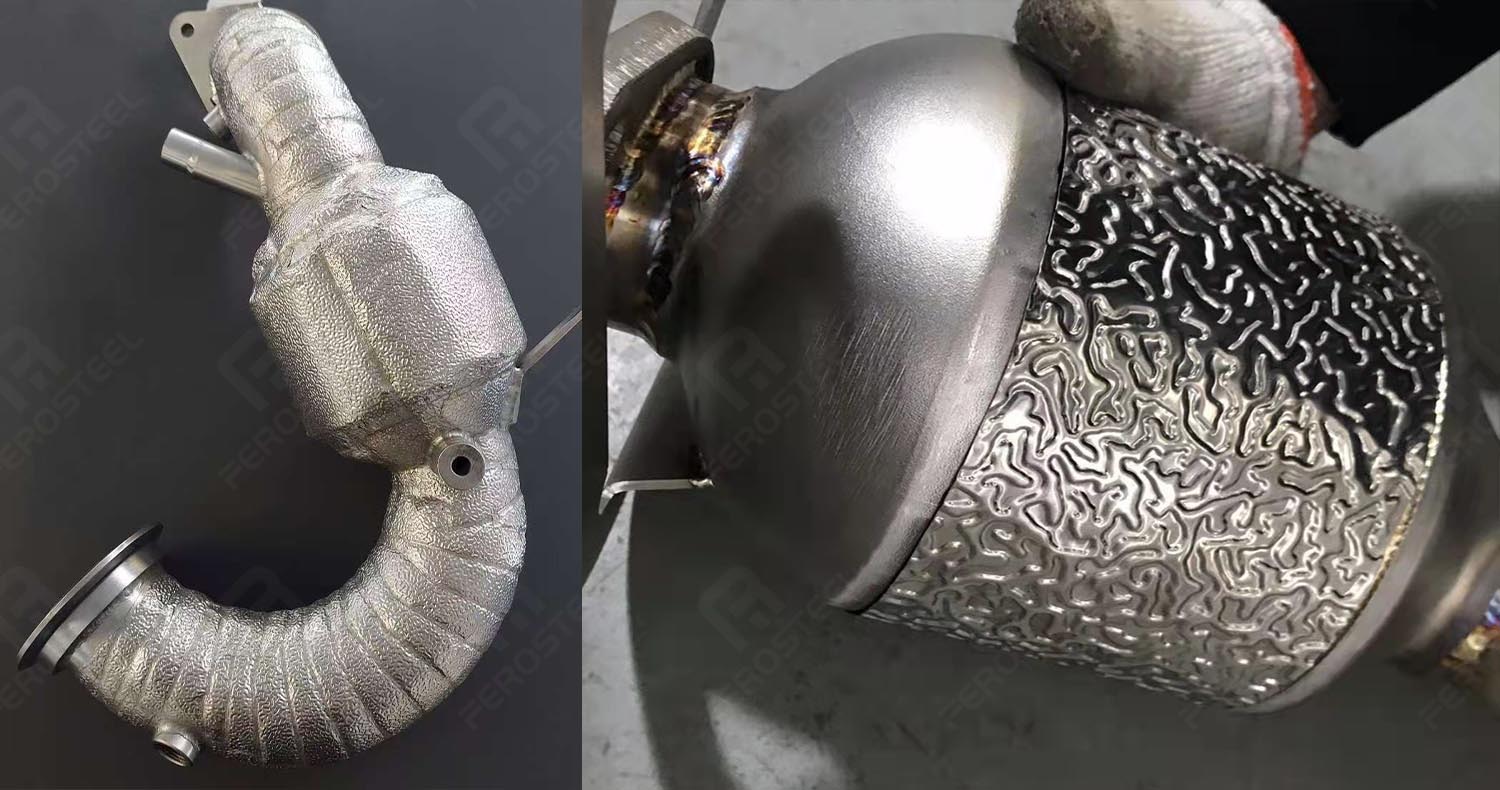

The single largest application for stainless steel heat shield coils. Exhaust systems generate temperatures from 300°C (tailpipe) to 850°C+ (manifold and turbocharger zones). Heat shield coils are used for:
Ferosteel's 304 ultra-thin embossed coil is the standard choice for these applications, offering the heat resistance and formability that exhaust system manufacturers require.
The fastest-growing segment for heat shield coil applications. EV battery packs require thermal barriers that can withstand thermal runaway events exceeding 800°C. According to Outokumpu, austenitic stainless steel can survive temperatures up to 1,250°C for over 10 minutes — critical for passenger evacuation time.
Ferosteel's ultra-thin 304 embossed coil is increasingly specified for:
Beyond automotive, heat shield coils serve diverse industrial applications:
Choosing the right grade is the most important procurement decision for heat shield coil applications.
| Grade | Max Service Temp | Corrosion Resistance | Cost Premium | Best For |
|---|---|---|---|---|
| 201 | ~700°C | Moderate | Lowest | Budget applications, industrial shielding |
| 304 | ≥850°C | Good (general atmosphere) | Baseline | Automotive exhaust, EV batteries, general industrial |
| 430 | ~815°C | Good (dry environments) | Slightly lower than 304 | Muffler components, non-critical exhaust parts |
Ferosteel's recommendation: For most automotive exhaust heat shield and EV battery thermal barrier applications, 304 stainless steel is the optimal balance of heat resistance, formability, corrosion resistance, and cost. Upgrade to 316L for marine or road-salt-heavy environments.
Ferosteel manufactures both stainless steel and aluminium heat shield coils. The right choice depends on your application temperature zone:
| Factor | Stainless Steel (304) | Aluminium |
|---|---|---|
| Max Service Temp | ≥850°C | ~590°C |
| Weight | Heavier | ~1/3 the weight of steel |
| Heat Reflection | Moderate | Excellent (up to 90% reflectivity) |
| Durability | High | Moderate |
| Cost per m² | Higher | Lower |
| Best Application | Hot-end exhaust, EV battery | Cold-end exhaust, HVAC, general insulation |
For exhaust manifolds, turbochargers, and catalytic converters — choose stainless steel. For tailpipe shields, underbody panels, and HVAC applications — aluminium may be the more cost-effective option.
Ferosteel is a manufacturer, not a trader. When you contact us, you speak directly to the production team. This means:
Ferosteel products are exported to:
Q1: What is the standard thickness of a stainless steel heat shield coil?
The standard thickness range is 0.10 mm to 0.15 mm, designed for lightweight automotive exhaust and EV thermal barrier applications. Custom thicknesses from 0.08 mm to 0.20 mm are available upon request.
Q2: What temperature can Ferosteel's 304 heat shield coil withstand?
Ferosteel's 304 stainless steel heat shield coil can withstand continuous temperatures of ≥850°C without deformation or structural degradation, making it suitable for exhaust manifold, turbocharger, and catalytic converter applications.
Q3: What is the minimum order quantity (MOQ)?
The standard MOQ is 25 kg. Sample orders are available for evaluation before bulk production. For trial orders, please contact our sales team.
Q4: Can the heat shield coil be customized with specific embossing patterns?
Yes. Ferosteel supports custom embossing patterns, including round bean, 5-bar, diamond, and OEM-specific designs. Submit your pattern drawing or reference, and we will develop the embossing roller accordingly.
Q5: What is the typical lead time for heat shield coil orders?
Standard lead time is 7–15 working days from order confirmation, depending on order volume and customization requirements. Expedited production is available for urgent orders.
Q6: Is the heat shield coil supplied in coil or sheet form?
Both formats are available. The standard supply is coil form (~50 meters per roll, 600 mm width) for continuous stamping and automated production lines. Sheet cutting is available for smaller-volume requirements.
Q7: What industries use stainless steel heat shield coils?
The primary industries are automotive manufacturing (exhaust systems, engine compartments, EV battery packs), industrial equipment (generators, boilers, machinery), construction (HVAC, fire-resistant barriers), and aftermarket automotive parts.
Q8: Do you provide export packaging for international shipping?
Yes. Ferosteel provides export-standard packaging: PE film surface protection, waterproof paper wrapping, wooden pallet or coil support, and steel strapping reinforcement — suitable for sea freight, air freight, and land transport.
When you need reliable stainless steel thermal heat shield coils at factory-direct pricing, Ferosteel delivers. Our vertically integrated production in Foshan, China, covers slitting, embossing, quality inspection, and export packaging — all under one roof.
Whether you are a Tier 1 automotive supplier, an aftermarket exhaust manufacturer, an industrial equipment producer, or a wholesale distributor, we can supply the heat shield coil specifications you need, with the quality consistency your production line demands.
Contact Ferosteel today to request samples, discuss custom specifications, or receive a factory-direct quote.
📧 Email: [email protected]
📞 Phone/WhatsApp: +86 18024913898
🏭 Address: 26F, Shibo Financial Center, Chancheng District, Foshan City, Guangdong, China
🌐 Alibaba: Ferosteel on Alibaba — Search "Ferosteel Stainless Steel Thermal Heat Shield Coil"
Related: Embossed Heat Shield Sheet | 304 Ultra-Thin Heat Shield Sheet | Stainless Steel Heat Shield Coil | 304 vs 316 Stainless Steel Guide | Contact Ferosteel
