Textured Stainless Steel Sheet Metal & Embossed Sheet Metal: Complete Usage Guide for Architects and Contractors

Introduction

Textured stainless steel sheet metal and embossed sheet metal are widely used in architectural decoration, elevator manufacturing, commercial interiors, and industrial flooring. Although both feature patterned surfaces, their structure, performance, and application focus are different.

This guide focuses on how to use them correctly in real projects — including thickness selection, grade choice, installation recommendations, and application scenarios. You can click the product links below to explore specific products.

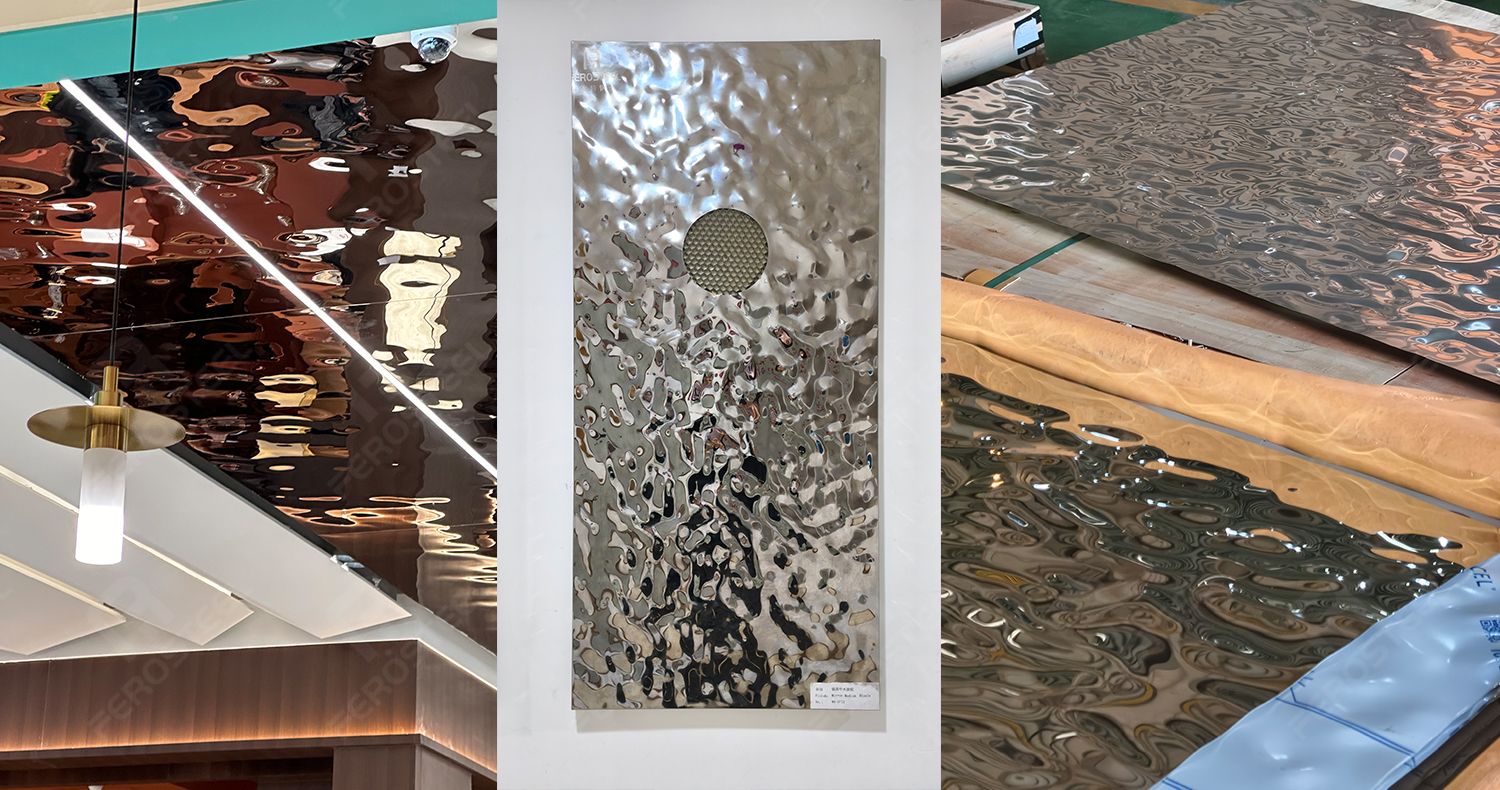

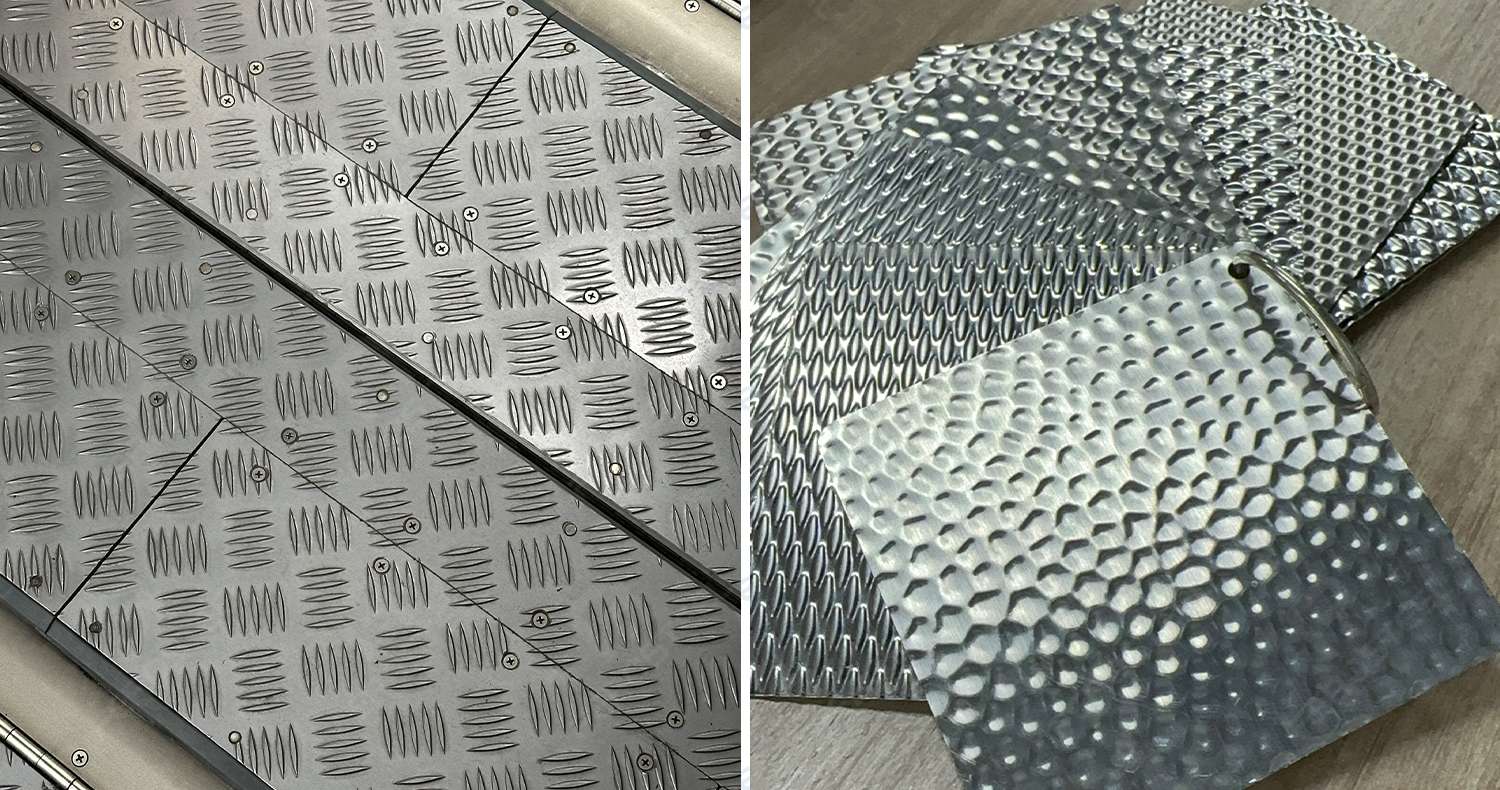

Textured Stainless Steel Sheet Metal: When and How to Use

Textured stainless steel sheets (like ripple patterns and 3D designs) are primarily used for decorative architectural applications where visual impact is important.

Typical Product Options

• 5WL & 2WL Checkered Stainless Steel Sheet — Ripple check pattern ideal for wall decoration and elevators
  🔗 https://www.ferosteel.com/5wl2wlchecked-plate

• Single Color Pattern Stainless Steel Sheet — Plain but subtly textured decorative sheet
  🔗 https://www.ferosteel.com/single-color-pattern

• 3D Design Stainless Steel Sheet — Deep and artistic 3D surface pattern
  🔗 https://www.ferosteel.com/3d-design-stainless-steel-sheet

Recommended Use

• Elevator cabin panels

• Hotel lobby wall cladding

• Retail store interiors

• Restaurant decorative ceilings

• Column surfaces

Why Use Textured Sheets?

• Enhanced 3D visual effect

• Attractive light reflection

• Surface hides minor scratches

• Compatible with PVD color finishes

Most Common Textured Patterns

5WL Stainless Steel Sheet

The ripple pattern offers a balanced decorative look. It's ideal for:

• Elevator interiors

• Feature walls

• Ceiling panels

Recommended thickness:

• 0.8mm – 1.2mm (for panels)

• 1.0mm – 1.5mm (for walls)

👉 See product: https://www.ferosteel.com/5wl2wlchecked-plate

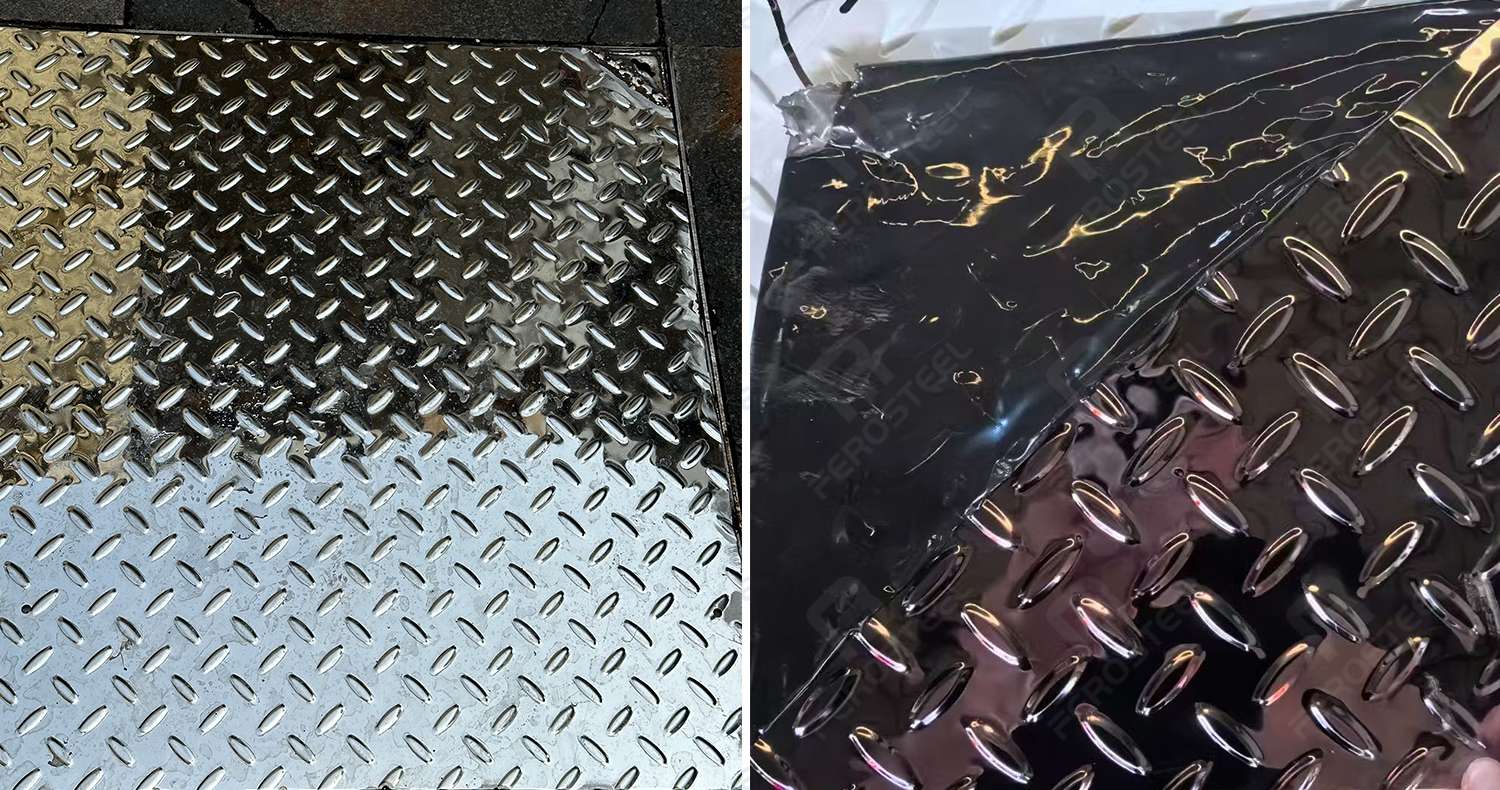

When to Use Embossed Sheet Metal

Embossed sheet metal provides both decorative finish and functional properties such as anti-slip performance and additional rigidity.

Embossed Product Option

• Embossed Finish Sheet — Diamond, linen, leather and other embossed patterns
  🔗 https://www.ferosteel.com/embossed-finish-sheet

Recommended Use

• Industrial walkways

• Anti-slip flooring

• Commercial kitchens

• Factory platforms

• Protective wall panels

Recommended Thickness

• 1.5mm – 3.0mm for flooring and platforms

• 0.8mm – 1.2mm for wall panels

Embossed sheets improve rigidity and surface grip compared with flat sheets of the same thickness.

Choosing the Right Stainless Steel Grade

Grade 304 Stainless Steel

• Suitable for indoor decoration

• Good corrosion resistance

• Cost-effective

• Widely used in elevator panels and interior walls

Grade 316 Stainless Steel

• Higher resistance to chloride (salt) environments

• Better choice for coastal or outdoor applications

Usage tip:

• Indoor decorative projects: Choose Grade 304

• Outdoor facade or coastal projects: Choose Grade 316

Thickness Guide by Application

Correct thickness selection ensures performance and cost-efficiency.

Installation Guidelines

Wall Cladding

• Use reinforcement backing (plywood or aluminum honeycomb)

• Apply even structural adhesive

• Allow expansion gaps for temperature changes

Elevator Panels

• Keep protective film until final cleaning

• Avoid welding on decorative surfaces

Flooring

• Use mechanical screws or anchor bolts

• Ensure flat, level base

• Align patterned direction with walking flow

Surface Finishes and Colors

Textured and embossed stainless steel sheets can be matched with different base finishes:

• Mirror base

• Hairline base

• Brushed finish

• PVD Color finish (Gold, Rose Gold, Black Titanium, Bronze)

PVD textured sheets are a preferred choice for high-end hotel and commercial decorations.

Indoor vs Outdoor Usage Summary

Conclusion

Choosing between textured stainless steel sheet metal and embossed sheet metal depends on the project’s purpose:

• Decorative focus: Textured ripple and 3D design sheets

  • 5WL ripple, single color patterns, 3D decorative panels

• Functional focus: Embossed sheets with anti-slip and strength benefits

✅ Textured sheets are ideal for elevator interiors, decorative walls, and ceilings.
✅ Embossed sheets are ideal for anti-slip flooring, industrial platforms, and protective panels.
