Water Ripple Stainless Steel Wall Panels for Modern Interiors

Quick Answer: Water ripple stainless steel wall panels are embossed metal sheets applied to interior walls to create a reflective, wave-textured feature surface. Most wall projects use 304 grade at 0.6–0.8 mm thickness, mounted either by adhesive to a solid substrate or with hidden clips on a metal frame. Medium wave pattern works best for walls viewed from 1–2 m. Add anti-fingerprint coating on panels at touch height. Plan for 5–7 kg/m² wall load and 8–12% cutting waste.

• Depth without bulk: The embossed texture reads as a 3D surface, but the panel itself is only 0.6–0.8 mm thin. No need to build out a deep wall feature.

• Light and dark play: Cove lighting, picture lights or LED strips grazing across the ripple create moving highlight and shadow bands. The same wall looks different at noon and at night.

• Wipe-clean durability: Unlike fabric wall covering or paint, stainless steel walls resist scuffs, fingerprints (with anti-fingerprint coating) and moisture — practical for lobbies, restaurants and retail.

**

0.0008 m × 7930 kg/m³ = 6.34 kg/m²

1. Ensure the substrate is flat, dry and clean. Prime non-porous surfaces.

2. Cut panels to size with aviation snips or guillotine. Deburr edges.

3. Apply neutral-cure silicone or polyurethane adhesive in 50 mm dabs at 300 mm spacing across the back of the panel.

4. Press firmly to the wall, use suction cups to position, then tape or brace until cured (24 hours).

5. Leave 2–3 mm expansion gaps at corners and floor/ceiling junctions. Cover joints with stainless U-channel or decorative trim.

1. Install light-gauge galvanized furring channels vertically at 400–600 mm spacing on the wall.

2. Attach stainless steel hidden clips to the channel spacing.

3. Panels hook onto clips from the side; joints are nearly invisible.

4. This system allows panels to be removed and replaced without damaging the wall.

1. Build a substrate: MDF, plywood or metal track shaped to the column profile.

2. For square columns: cut three flat panels per column (two sides + front), join at corners with corner trim.

3. For round columns: specify pre-formed curved panels from the factory. Water ripple can be roll-formed to a minimum radius of about 300 mm — ask the supplier for your column diameter.

4. Adhere mechanically fasten to the substrate.

**

**

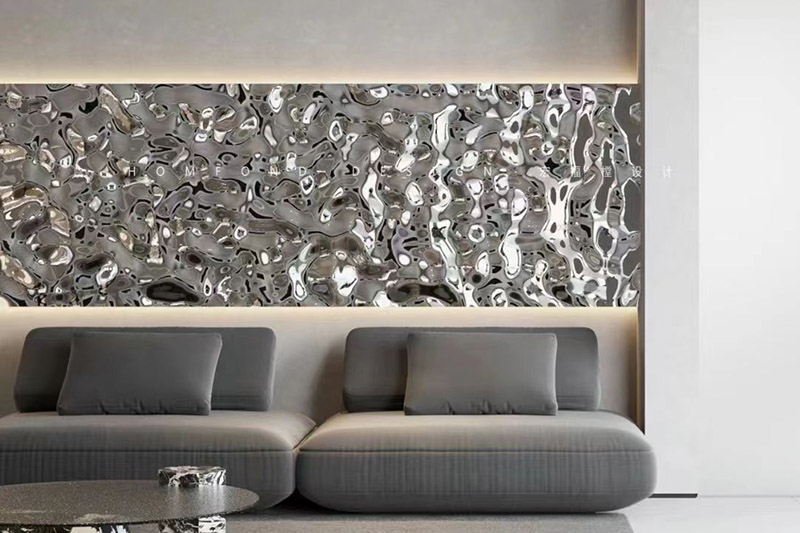

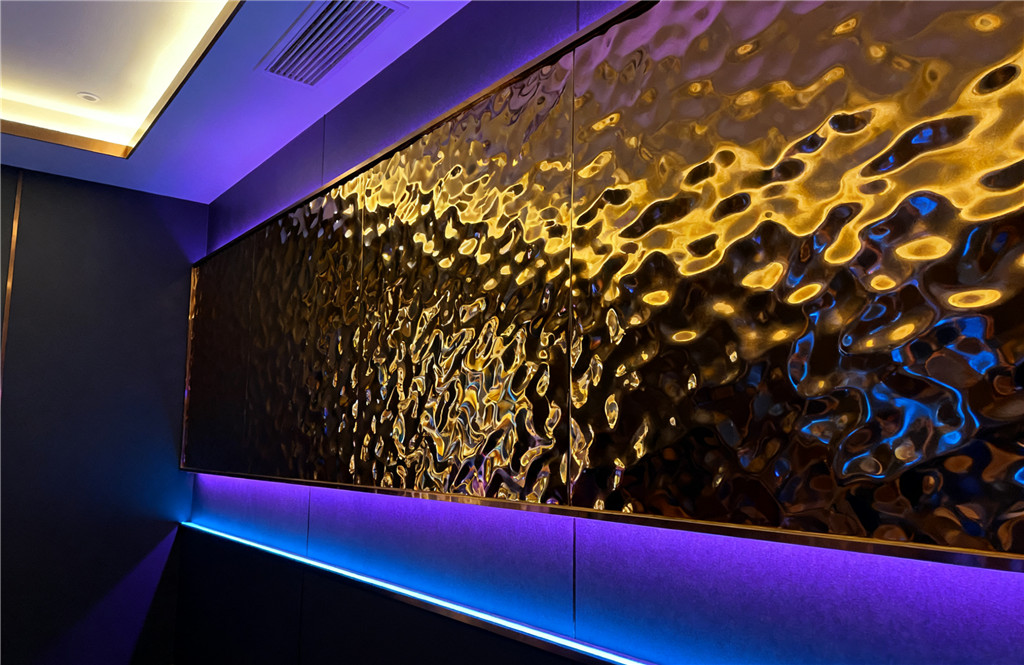

• Top cove LED strip — washes light down the ripple, creating flowing highlight bands.

• Picture lights / wall washers — mounted above the wall, angled down at 30°.

• Skirting LED at floor level — uplights the wall for dramatic effect in bars and lounges.

• Avoid direct front lighting — it flattens the texture and creates glare.

• Horizontal joints: align with architectural lines (e.g. at 1.2 m height or door head level).

• Vertical joints: make them disappear with matching stainless trim, or use the natural panel width (1219 mm) as a design rhythm.

• Corners: use pre-formed stainless corner trim in matching finish. Do not bend ripple panels on site — the pattern distorts.

• Floor and ceiling junctions: leave a 3–5 mm shadow gap; cover with aluminum skirting or stainless U-channel.

1. Using large wave on a close-up wall: Large wave reads as uneven and busy at 1–2 m distance. Use medium wave for walls; reserve large wave for distant feature walls or ceilings viewed from far below.

2. Mirror finish on a touched wall: Full 8K mirror shows every fingerprint and scratch. At reachable height (below 2.1 m), use hairline ripple or add anti-fingerprint coating.

3. No expansion gaps: Wall panels expand horizontally across the wall. Panels glued edge-to-edge will buckle. Leave 2–3 mm per panel joint.

4. Over-curved on site: Ripple panels bent in the field crack the embossed pattern and PVD coating. Order pre-formed curved panels from the factory.

5. Ignoring substrate flatness: Mirror ripple magnifies every wall imperfection. If the existing wall is uneven, install new plasterboard or furring first.

6. Wrong color temperature: Gold PVD ripple looks orange under cool white LEDs. Match light temperature to finish: warm 3000K for gold/champagne, neutral 4000K for silver.

• Grade: 201 budget, 304 standard, 316L for humid/coastal

• Thickness: 0.6–0.8 mm is the wall sweet spot

• Finish: bare mirror, hairline, or PVD color (adds 30–60%)

• Curving: pre-formed radius panels cost more than flat sheets

• Pre-cut to size: saves on-site labor but increases unit price

• Straight rectangular walls: 8–10% waste

• Walls with openings (doors, windows, vents): 12–15%

• Column wraps with curved panels: 10–12% (factory-fit, less on-site cut)

• Stocked silver mirror, flat panels: 3–7 days

• PVD colors (gold, black, rose gold): 15–25 working days

• Pre-formed curved / radius panels: 25–30 days
